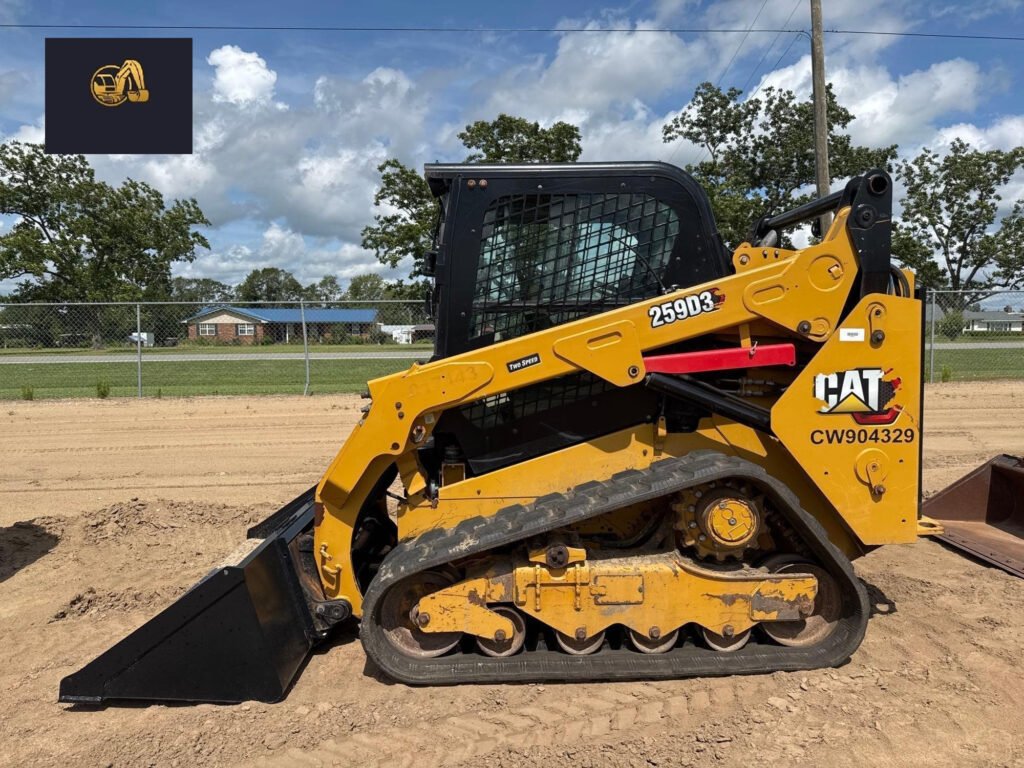

The 2020 Caterpillar 259D3 is a high-performance compact track loader designed for power, stability, and versatility. Equipped with a 100 HP diesel engine, vertical-lift boom, and advanced hydraulic system, the 259D3 delivers excellent lifting, digging, and material handling capabilities. Ideal for construction, landscaping, agriculture, and utility work, it combines strength with operator comfort and precise control.
2020 Caterpillar 259D3 – Specifications
Engine & Power
-
Cat C3.6 diesel engine
-
100 HP (75 kW) gross power
-
Tier 4 Final emissions compliant
Performance & Capacity
-
Rated operating capacity (50% tipping load): 3,050 lbs (1,383 kg)
-
Tipping load: 6,100 lbs (2,767 kg)
-
Breakout force (bucket): ~7,500 lbs (33 kN)
-
Travel speed: 7.1 mph (11.4 km/h)
Hydraulics
-
Standard flow: 23.5 gal/min (89 L/min)
-
High-flow option: 35 gal/min (132 L/min)
-
Hydraulic pressure: 3,500 psi
-
Supports high-demand attachments like mulchers, snow blowers, and cold planers
Dimensions & Weight
-
Operating weight: ~11,000 lbs (4,990 kg)
-
Length with bucket: 145 in (3,683 mm)
-
Length without bucket: 114 in (2,896 mm)
-
Width over tracks: 67 in (1,702 mm)
-
Height to top of cab: 82 in (2,083 mm)
-
Ground clearance: 10 in (254 mm)
Operator Comfort & Features
-
Enclosed, climate-controlled cab with excellent visibility
-
Ergonomic joystick controls and adjustable suspension seat
-
Advanced display with machine monitoring
-
Ride control for smoother operation
-
Quick coupler system for fast attachment changes
-
Easy ground-level service access points
Applications
-
Construction, earthmoving, and grading
-
Landscaping and site preparation
-
Agriculture and farm operations
-
Material handling and heavy-duty attachment work
Condition:
1-owner machine in excellent working condition
Clean cab with all functions working properly
Well-maintained and fully serviced
No leaks or known mechanical issues
Delivery & Terms:
Provide free shipping anywhere in the U.S for the first 1000 miles and then we charge $1 per mile.
Discounts for 2 or more units in one order
30-Day Money Back Guarantee
Warranty plans available upon request
